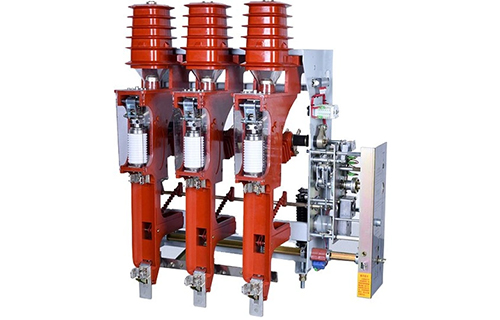

High voltage switch

2024-07-25 11:56:21

China is the world's largest producer of high-voltage switches，the user requires more than 20 years for the effective life of the high-voltage switch.Grease has a very important influence on the safety, reliability, durability and environmental adaptability of medium and high voltage switch.Mainly reflected in operating mechanism lubrication, electrical contact lubrication, GIS sealing lubrication.

Since 2016, VNOVO has participated in the research and development of localized replacement of high-voltage switch grease together with China Xidian Group and Pinggao Electric, and successfully developed a variety of grease products.Through a variety of simulation tests, it meets of the different structures’ requirements of long-life lubrication, load resistance, anti-aging, material compatibility, low volatility, and low oil content.

Application Details

Classification	Application	Design Requirements	Recommended Products	Product Features
sealing parts	GISGIS flange seal	Sealing, low oil separation, good compatibility with rubber and metal materials	DC11 DC11 sealing silicone grease	High viscosity silicone oil and silica formula, good sealing, low oil separation rate.
sealing parts	Circuit breaker direct acting seal, cover plate	Sealing, high and low temperature resistance, water resistant, good compatibility with rubber and metal materials	SG130L SG130L sealing silicone grease	High viscosity silicone oil grease with excellent sealing and material compatibility
Conductive, Contact Parts	Arc interrupter contact, touch finger, mounting surface for multi-contact ring, spiral contact finger.	Long life, high temperature resistance, arc extinguishing, oxidation resistance	SC212K contact grease	Arc quenching, anti-oxidant, anti-wear additive formulated grease.
	load switch, circuit breaker	Long life, high temperature resistance, arc extinguishing, oxidation resistance	SC212P,contact grease	Synthetic grease with anti-wear additives for metal and metal lubrication
	In-air terminal board connection, Arc interrupter conductor and conductive arm connection surface etc.	Prevent silver plating, copper, aluminum and other metal surface oxidation, rustproof, wear resistance	SC202T grease	Formulated with fully synthetic base oil with special anti-oxidation, anti-oxidation.
	Copper bar lap, grounding switch	Conductive, reduce contact resistance and temperature rise, anti-oxidation, water resistance	D700Cconductive grease	Synthetic oil grease with metal conductive solid additives
mechanical parts, transmission parts	Mechanical sliding parts of the operating mechanism (pin connection and sliding parts in the mechanism, rotating parts etc.)	Heavy wear resistance, high and low temperature resistance, antioxidant, noise reduction	SYN320R grease	Fully synthetic base oil, high and low temperature resistance, excellent load resistance performance
mechanical parts, transmission parts	Heavy-duty sliding parts of the body(the piston rod of the arc extinguishing chamber and the inner wall of the pressure cylinder etc.),isolation switch rack and pinion, screw rod, guide rail	High and low temperature resistance, anti-wear, anti-oxidation	M730B grease	High concentration molybdenum disulfide formula, low oil separation, suitable for SF6 gas space

Rain hat series

In 2019, VNOVO and Xidian Group jointly developed a series of rain hats.Through structural innovation, the series of problems such as waterproof, long life, and operation convenience of GIS high-voltage switch connecting screws and nuts are perfectly solved, and obtained the structure patent,patent number: 13287897.At the same time, it has also been recognized by end customers, and the products have been widely promoted and applied,such as the Three Gorges Gezhouba Reconstruction, Sichuan Valley, Nanjing Tongjiang Substation, Sichuan Nanlong Substation, Jining Jinxiang 55KV, Luoyang East Substation, etc.
