Damping Grease Series with Optional Viscosity

Damping grease is also called high-viscosity grease, shock-absorbing grease, resistance oil, etc. It is a grease refined from high-purity inorganic thickener, synthetic oil, and various additives.Damping grease is a type of grease that plays a dual role of damping and lubrication between two friction surfaces.

product details

Because the damping grease has a high viscosity, it is used to join parts, allowing large gaps and tolerances, and has a buffering effect, making the parts smooth and precise, and can improve the feel and reduce noise.It can help the instrument prevent the intrusion of moisture, dust and other contaminants, and also reduce wear and prolong product life.

1. The higher viscosity can meet requirements of the specified rotational and sliding torque.

2. Good viscosity-temperature can be used in a wide temperature range, can adapt to hot and cold weather, and it will not cause too little damping in summer or in tropical regions, and will not cause too much damping in winter or in cold regions, or even solidified and unable to turn.

3. Excellent colloidal stability, no oil separation during using to cause pollution of related parts.

4.Low evaporation and long service life.

5. Good corrosion resistance, does not corrode the metal in the use part, and has good compatibility with related plastic parts.

6. Good adhesion and easy application.

7. Good lubricity and meets environmental protection requirements.

Application Range:

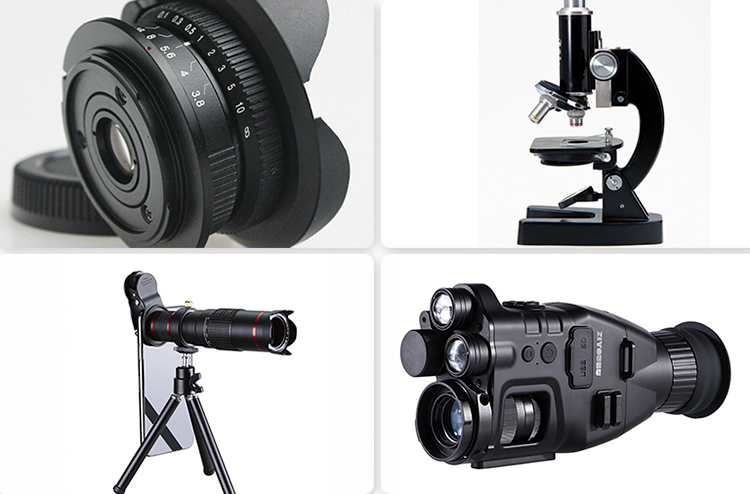

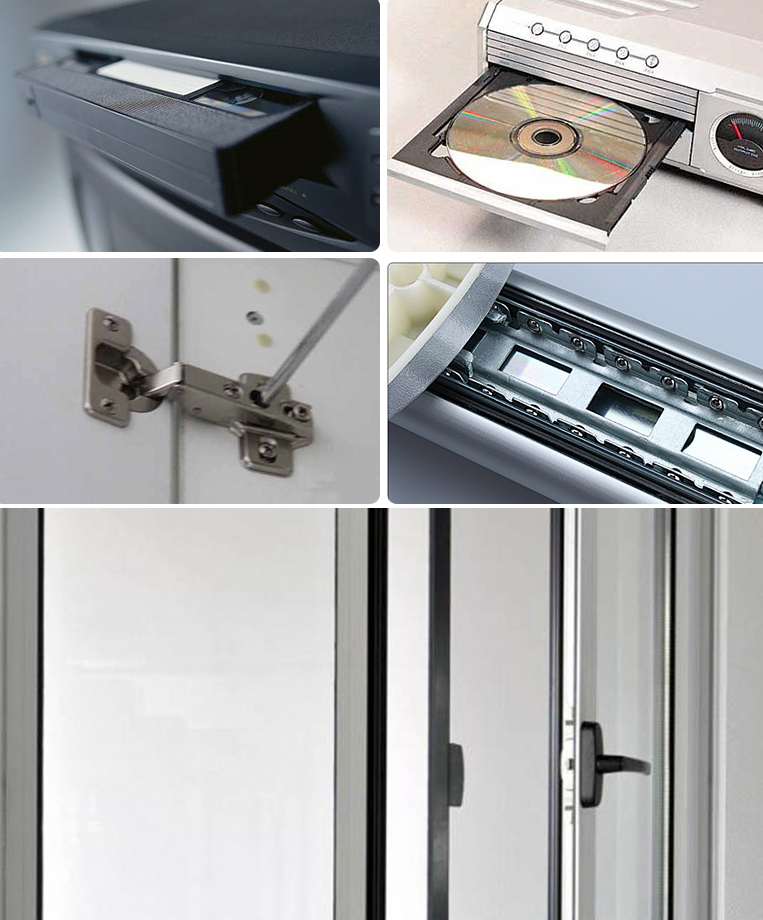

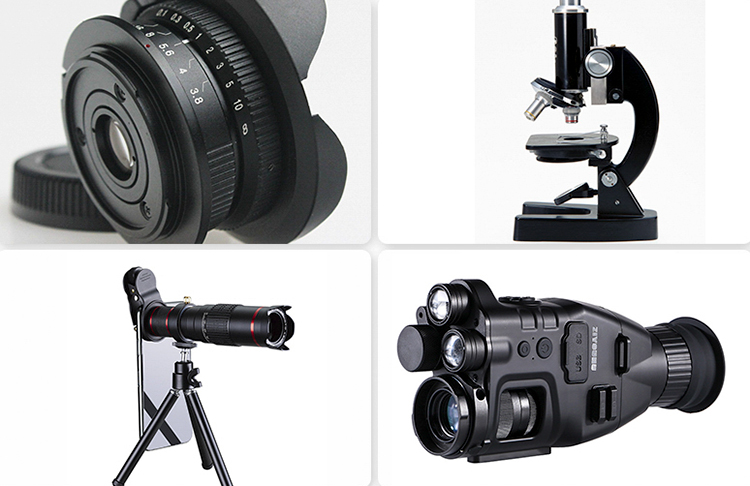

Used for lubrication of any free motion area that needs to be controlled of optical instruments, electronic instruments, measuring instruments, sanitary ware, gear systems, home appliance controls, switch knobs, entertainment equipment, laser controls, potentiometers, TV/radio tuning, and stepper motors.

Model	Color	Basic Oil	Thickener	Damping class	(℃)Temperature Range	Characteristic and Applications
DG4200	white translucent	semi-synthetic oil	inorganic	extra light	-25~120	1.Multiple viscosities are available to prevent product pollution from flow. 2.used for precise positioning mechanism, fine-tuning and blocking buffer mechanism that need to increase the feel and control the movement speed of parts. 3.Used for damping and lubrication of buffer hinges and hinges of various materials, shock absorption of various springs, and parts that require shock absorption
DG4202	white translucent	semi-synthetic oil	inorganic	lighter	-20~100
DG4203	white translucent	semi-synthetic oil	inorganic	light	-20~120
DG4205	white translucent	semi-synthetic oil	inorganic	moderate	-15~120
DG4207	white	semi-synthetic oil	inorganic	weight	-5~120
DG4208	white	semi-synthetic oil	inorganic	extra heavy	5~120

Model	Color	Basic oil	Thickener	Damping class	(℃)Temperature range	Applications and Characteristic
DG4301	Colorless and transparent	Modified silicone oil	50000	Very light	-50~150	Automotive,electronic industry positioner, damper.
DG4303	Colorless and transparent	Modified silicone oil	300000	Light	-50~150	Automotive,electrical appliances, electronic industry
DG4305	Colorless and transparent	Modified silicone oil	500000	Moderate	-45~150	Electrical appliances, auto parts dampers
DG4306	Colorless and transparent	Modified silicone oil	1000000	Moderate	-45~150	Hardware, furniture, bathroom dampers
DG4307	Colorless and transparent	Modified silicone oil	2000000	Heavy	-45~150	Hardware, furniture, bathroom dampers
DG4308	Colorless and transparent	Modified silicone oil	3000000	Heavy	-40~150	Large damper, shock absorber

Model	Color	Basic oil	Thickener	Damping class	(℃)Temperature range	Applications and Characteristic
DG4800	light yellow translucent	PAO	Inorganic	Lighter	-45~180	High and low temperature resistance, shear resistance Used for damping and silencing of focusing structures for various optical instruments and equipment. Used for damping and lubrication of the automotive industry,such as slow-opening structure for storage, rotary light and dark switch, heating and cooling air conditioning control, sunroof structure, suspension system, sunroof slide rail.
DG4802	light yellow translucent	PAO	Inorganic	Lighter	-40~180
DG4803	Colorless and transparent	PAO	Inorganic	Light	-40~180
DG4805	Colorless and transparent	PAO	Inorganic	Moderate	-35~180
DG4807	light yellow transparent	PAO	Inorganic	Heavy	-30~180
DG4808	ight yellow transparent	PAO	Inorganic	Very Heavy	-30~180
