Dry Film Lubricant Series PTFE/ PFPE

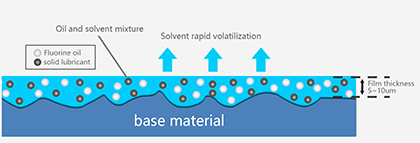

Dry film lubricant is a new type of lubricant prepared by uniformly dispersing ultra-low molecular weight polytetrafluoroethylene particles (PTFE) and perfluoropolyether oil (PFPE) in a fluorine solvent.After the fluorine solvent of this drying film oil evaporates,it will forms a uniform translucent lubricant film on the surface of the workpiece.The oil film is a mixture of polytetrafluoroethylene and perfluoropolyether, which has a very low friction coefficient, does not absorb dust, and has excellent lubricating performance and cleaning performance.The oil film prevents direct contact of the friction surfaces, thereby reducing friction.Its lubricity is more than 2 times that of most common lubricants, its operating temperature range is wide, and it has the characteristics of high cleanliness, low torque lubrication, noise reduction, anti-static, and oil-free

product details

VNOVO dry film oil has fast film forming speed and natural uniform film thickness, providing excellent lubrication for metal, plastic and rubber parts;It has the characteristics of drainage, moisture-proof and no leakage,does not contaminate the product;excellent insulation, good friction coefficient, good wear resistance, dust-proof, anti-static, increase the finish of the parts;Meets environmental protection requirements, has good compatibility with plastics and rubber, and protects metals from corrosion;simple operation and long service life.

Test conditions
	Testing equipment	VNOVO TYPE2019
	load	2000g
	Ball (static friction component)	Diameter 10mm
	ABS board (dynamic friction component)	Thickness 2mm
	speed	2000mm/min
	Friction distance	50mm
	Work frequency	2000 times (once per session)

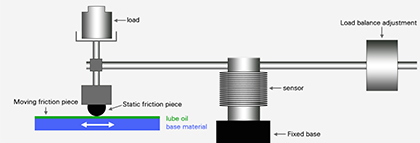

Principle diagram	test method

Model	Color	Basic Oil	Thickener	Damping class	(℃)Temperature Range	Characteristic and Applications
Universal	T10	white liquid	1.6	None	-50~200	Low odor, meet environmental protection requirements; wide operating temperature range, uniform film thickness, short drying time, slow precipitation
Universal	T10L	white liquid	1.6	None	-40~200	High molecular weight base oil, a multi-functional product with both lubrication and noise reduction, good noise reduction and damping performance. suitable for auto parts slide rails, air conditioner outlets, etc.
Transparent	T11	transparent liquid	1.58	None	-50~200	Fully transparent dry film lubricant, no effect on the appearance of parts after film formation.
Odorless	T14	white liquid	1.58	None	-50~200	。Lubrication between plastics, transparent oil film, does not affect the appearance
Low friction	T13B	white liquid	1.62	None	-60~220	Very low coefficient of friction, high load resistance, durable lubrication, silencing.
High concentration	T20	white liquid	1.58	None	-50~200	Very low coefficient of friction, high load resistance, durable lubrication, noise reduction
Coloring	T22	red/blue liquid	1.59	None	-50~200	Fluorine solid additive is added, and it has a color after being attached to the surface of the material, which is convenient for identification
