Metal Coating
Anti-friction coatings on metal surfaces are often described as “lubricating coatings”, in which solid lubricants (molybdenum disulfide / PTFE / graphite, etc.) are dispersed in a selected resin mixture and solvent, and can form a lubricating film after heating and drying at room temperature. Our anti-friction coatings help customers improve safety, reliability and performance by controlling friction and wear, preventing component failure, extending lubrication cycles, and reducing production and operating costs.
Anti-friction coatings provide economical, long-lasting use and value where other lubricants fail:
| Application Field | Applicable Components |
| Railway | Anti-corrosion interlocking pin, push rod, roller, bearing, pin, center plate |
| Construction Machinery | Interlocking bushings and main shafts of excavators, etc. |

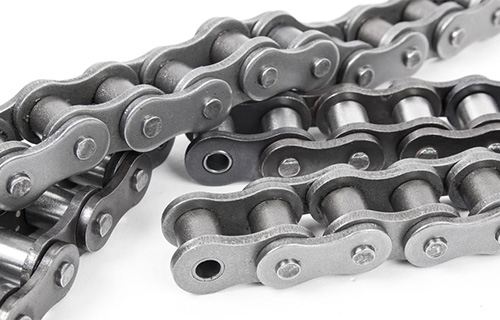

| General Industry | Coupling pins for various chains, bushings and pins for incinerators, splined shafts of bowling equipment, wheel hub, sewing machine commutator, eccentric wheel, rotor shaft |
| Automotive-Related | Idle gear of shaft (transmission component of automotive diesel vehicles), electrical components (automotive coolers), thrust washer, washer, shaft, gear (final gear), piston |

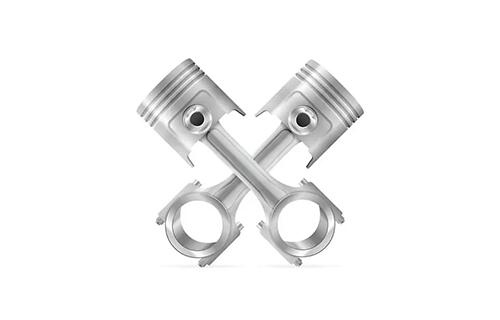

| Two-Wheeled Vehicles | Piston, rocker arm, rocker arm shaft |
| Marine-Related | TSUBAKI marine pins (Usage: transmission chain of marine diesel engines), tanker rudder pin, commutator (shipbuilding equipment), piston, roller shaft (marine engine), marine chain |
| Nuclear Power | Stainless steel pipes and pipe fittings (adapters) |
| Precision Instruments | Dovetail tenon slider, shaft, worm gear (clock-related) |
| Steelmaking | Drum clamp section of rolling mills, worm gear center, top roll balance, plunger, scrap shear, screw box, spare roll, arm, connecting rod, transmission shaft, pressure rod, electric coil elevator |
- Provide dry, clean lubrication that is unaffected by dust, dirt and moisture
- Provide lifetime lubrication without aging, evaporation or oxidation
- Anti-rust, no surface treatment (such as galvanizing) required
- Non-flammable, protects metals, plastics and elastomers from contamination
- Control film thickness based on precise load-bearing capacity
| Model | Appearance | Standard Curing Conditions | Features & Uses | Applications |
| VN-100 | Gray-black | Room temperature × 24 h | General air-drying dry-film lubricant containing molybdenum disulfide. Cures at room temperature, making it suitable for simple application, spray-type products, and general anti-seize lubrication. | Anti-seize lubrication for mold guide pins, water faucet screws and nuts, and aluminum alloy dies. |
| VN-110 | Gray-black | Room temperature × 2 h | General air-drying dry-film lubricant containing molybdenum disulfide. Compared with DM-100, it offers better rust resistance and oil resistance. Suitable for dip-coating applications. | Anti-galling and seizure prevention for aluminum alloy nuts. |
| VN-204 | Gray-black | 180°C × 45 min | General heat-curing dry-film lubricant containing molybdenum disulfide. Suitable for components requiring long-term lubrication under load-bearing conditions. | Anti-seize lubrication for bolts; reduces wear and sticking of solenoid valve plungers. |
| VN-212 | Gray-black | 180°C × 45 min | General heat-curing dry-film lubricant containing molybdenum disulfide. Forms an effective film that enhances MoS₂ performance and provides excellent load resistance and anti-seize properties. | Reduces wear of solenoid valve plungers; lubrication for oilfield equipment, coal-mining equipment, engine bearings, and threads of construction machinery. |
| VN-216 | Gray-black | 180°C × 45 min | High-load, long-life dry-film lubricant containing a high concentration of molybdenum disulfide. Suitable for coating materials that deform after coating; can be applied after pre-coating the machined board. | Lubrication for engine oil gaskets, exhaust or intake manifold gaskets, and copper tubes. |
| VN-230 | Gray-black | 240°C × 2 h | General heat-curing dry-film lubricant containing molybdenum disulfide. Uses a special surface that cures in 2 minutes after firing, providing good coating properties on coated deformable materials. | Lubricating coating for pans and copper belts. |
| VN-300 | Gray-black | 180°C × 45 min | General heat-curing dry-film lubricant with a high concentration of molybdenum disulfide. Used as a public hazard prevention and anti-rust coating, with excellent long-term rust prevention and load resistance. | Lubrication, rust prevention, transmission-belt lubrication, and conveying-belt lubrication for food machinery components. |
| VN-570 | White, semi-transparent | Room temperature × 10 min | Air-drying dry-film lubricant containing PTFE. Suitable for mold release of rubber molds and for lubrication of plastic, rubber, and wooden sliding components. Aerosol-type product available. | Lubrication for automatic vending machines, furniture sliding parts, and molded rubber or plastic products. |
| VN-650BK | Black, glossy | 180°C × 30 min | Heat-curing dry-film lubricant containing PTFE. Provides excellent lubricity, corrosion resistance, long-term maintenance, and durability against pharmaceuticals, oils, and humidity. | Lubrication, rust prevention, and lubrication of sliding parts in safety components, weak-current equipment, and precision machinery parts. |
| VN-671BK | Black | 180°C × 30 min | High-hardness, highly corrosion-resistant dry-film lubricant containing PTFE. Features controlled corrosion resistance and low friction coefficient, with excellent insulation. Black type. | Reduces wear of solenoid valve plungers; lubrication for precision engine bearings, circuit breakers, and related components. |
| VN-671GR | Green | 180°C × 30 min | High-hardness, highly corrosion-resistant dry-film lubricant containing PTFE. Features controlled corrosion resistance and low friction coefficient, with excellent insulation. Green type. | Long-term anti-rust coating for bolts used in steel structures, bridges, machinery equipment, and concrete structures. |
| VN-673S | Silver | 180°C × 30 min | Dry-film lubricant containing PTFE and stainless-steel flakes. Combines high hardness and high corrosion resistance with special surface treatment for excellent corrosion resistance, forming a hard, damage-resistant film. | Long-term anti-rust coating for bolts used in steel structures, bridges, machinery equipment, and concrete structures. |
| VN-673S(P) | Green | 180°C × 30 min | Dedicated surface coating for DM-671GR and DM-673S to further improve corrosion resistance. | Long-term anti-rust topcoat. |
| VN-690BK | Black | 280°C × 30 min | Non-stick coating agent containing PTFE and non-adhesive fluororesin. Prevents adhesion of liquid ash and oil sludge. | Prevention of ash and oil contamination adhesion on conveyor belts, rollers, and coating tools. |
| VN-701BK | Black | 180°C × 30 min | Heat-curing dry-film lubricant containing PTFE. Designed for dry-film lubrication; the coating hardness is stronger, and its high film density enables long-term lubrication with excellent wear resistance. Suitable for dip-coating applications. | Rust prevention for automotive bolts; lubrication for automotive transmission components, threaded parts, and safety components. |
| VN-820 | Gray-black | Room temperature × 24 h | Special inorganic air-drying dry-film lubricant containing PTFE, molybdenum disulfide, and graphite. Uses a special surface to improve heat resistance. | Anti-seize lubrication for machinery equipment bolts and tree-fat molding mold bolts; high-temperature lubrication. |
| VN-840 | Gray-black | 250°C × 30 min | Special inorganic heat-curing dry-film lubricant containing PTFE, molybdenum disulfide, and graphite. Uses a special surface to improve heat resistance and corrosion resistance. | Anti-seize lubrication for bolts near high-temperature furnaces. |
| VN-860WT | White | 180°C × 20 min | Heat-resistant dry-film lubricant containing boron nitride with excellent heat resistance. Heat resistance up to 900°C; black type available. | Anti-adhesion lubrication for gaskets and bolts. |
| VN-901BK | Black | 180°C × 45 min | High-performance dry-film lubricant containing molybdenum disulfide and PTFE. Combines the load resistance of molybdenum disulfide with the lubricity of PTFE, providing excellent rust prevention and corrosion resistance. | Lubrication and rust prevention for solenoid valve plungers, lubrication for aluminum frames, and sliding parts of various weak-current components. |
