Fluorinated solvent
Fluorinated fluids are a class of colorless and transparent fluorinated organic compounds with excellent chemical stability, thermal properties and electrical properties. Due to their low viscosity, non-flammability, electrical insulation and good chemical inertness, they are widely used in the cleaning of electronic and precision parts, heat dissipation of precision equipment such as semiconductor processing equipment, as well as cooling and temperature control of other electronic and electrical equipment, and live fire fighting.

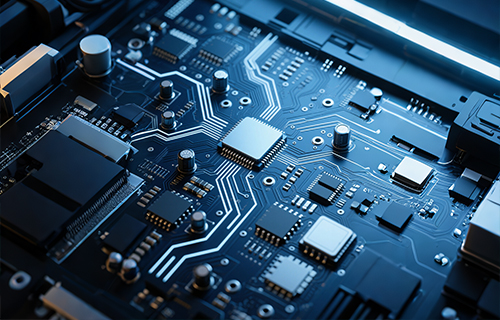

Precision Cleaning

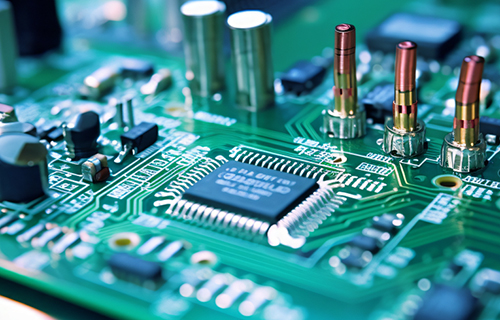

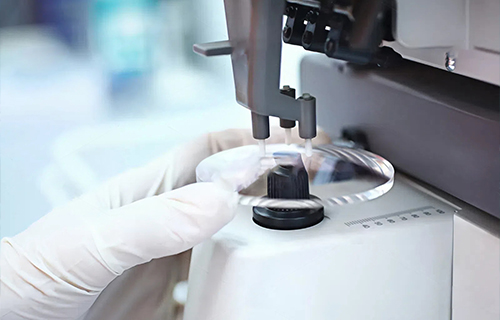

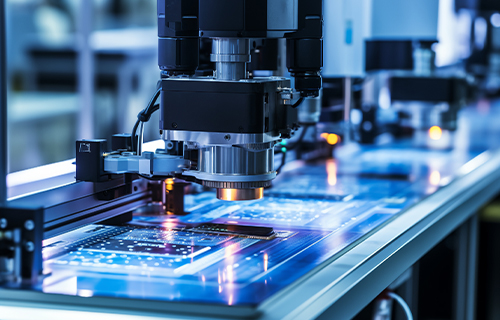

Fluorinated fluids have good chemical inertness, electrical insulation and unique low surface tension, which can well spread and disperse to achieve ideal scouring, wetting and cleaning effects.This product is widely used in the cleaning of various precision substrates, such as printed circuit boards, electronic components, precision parts, electronic screens and optical lenses.As well as cleaning of semiconductor equipment, LCD OLED equipment, computer hard drives, etc.
Key Features
- Extremely low surface tension and viscosity, easy to flow and penetrate;
- Good insulation, with high dielectric strength;
- Moderate boiling point, fast volatilization speed, no residue after cleaning;
- Chemical inertness, good material compatibility, no corrosion;
- Non-toxic and harmless, green and environmental friendly, short atmospheric residence time;
- Non-hazardous, non-flammable and non-explosive, safe with no flash point.
Product Parameters
| Item | Typical Value |
| Appearance | Colorless transparent liquid |
| Density (25℃, g/ml) | 1.487 |
| Viscosity (25℃, cP) | 0.68 |
| Surface Tension (mN/m) | 16.4 |
| Boiling Point (℃) | 56.2 |
| Pour Point (℃) | -91 |
| Flash Point | None |
| Saturated Vapor Pressure (25℃, kPa) | 31.50 |
| Volume Resistivity (Ω-cm) | 1.53*1014 |
| Dielectric Strength (2.54mm gap, KV) | 35 |
| ODP | 0 |
| GWP | 540 |

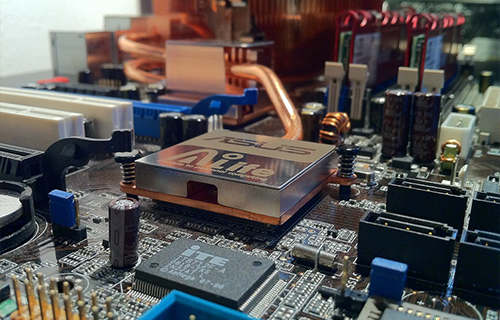

Liquid Cooling & Temperature Control
Fluorinated fluids have a wide liquid phase range, and have good compatibility with most metals, plastic parts and rubber materials.They can be widely used in general industrial temperature control or precision temperature control in the electronics industry, as well as various heat dissipation systems.Such as heat dissipation of generator sets, cooling of high-voltage transformers, heat dissipation of precision medical instruments, temperature control of semiconductor equipment, etc.

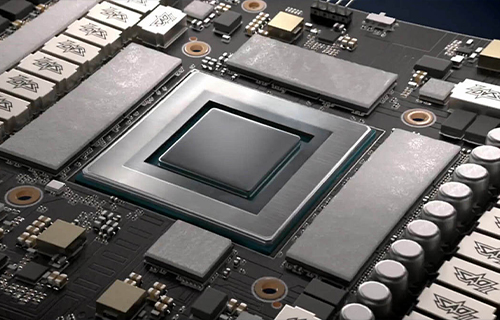

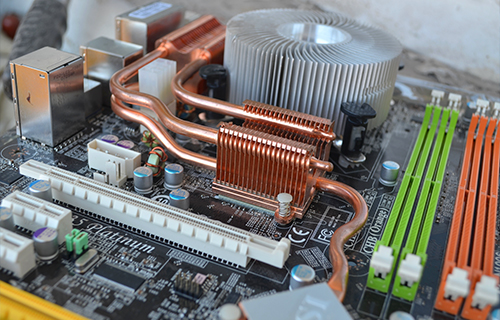

Fluorinated fluids can directly take away the heat of equipment or parts, with high heat dissipation efficiency.It allows CPU, GPU chips or power devices to work overclock, improving the integration or density of the entire equipment.
Key Features
- Good stability, durable and long-lasting;
- Chemical inertness, good material compatibility;
- Low surface tension, easy to flow;
- Safe with no flash point;
- ·Recyclable and reusable;
- ·Good thermal performance, high heat dissipation efficiency;
- Good insulator, with high dielectric strength;
Product Parameters
| Item | Typical Value A | Typical Value B |
| Appearance | Colorless transparent liquid | Colorless transparent liquid |
| Density (25℃, g/ml) | 1.520 | 1.626 |
| Viscosity (25℃, cP) | 0.61 | 1.98 |
| Surface Tension (mN/m) | 14 | 18.8 |
| Boiling Point (℃) | 72 | 133 |
| Pour Point (℃) | -95 | -93 |
| Recommended Operating Temperature (℃) | -80~55 | -75~125 |
| Flash Point | None | None |
| Latent Heat of Vaporization (KJ/Kg) | 133 | 144 |
| Specific Heat (KJ/(Kg·K)) | 1.25 | 1.19 |
| Dielectric Strength (2.54mm gap, KV) | 40 | 40 |
| Dielectric Constant (1kHz) | 5.6 | 9.5 |
| ODP | 0 | 0 |
| GWP | 33 | 1 |

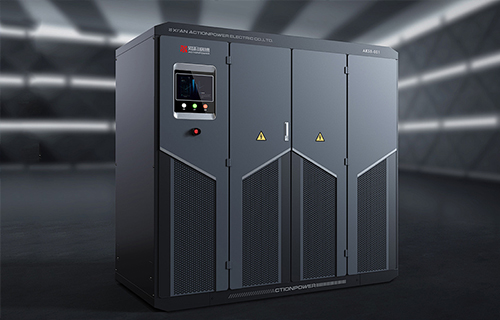

Live-line firefighting

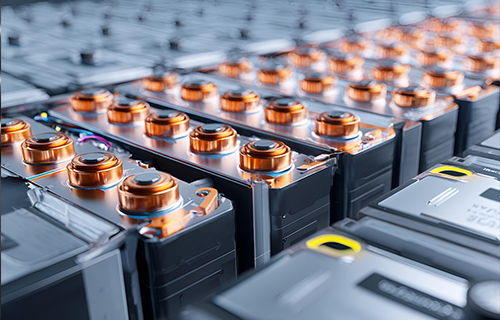

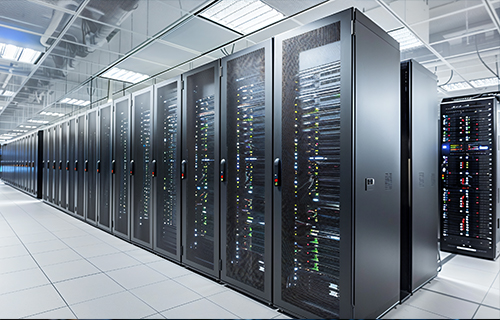

Fire fighting with fluorinated fluids as active ingredients mainly covers live facilities in fields such as lithium batteries, energy storage power stations, computer rooms, data centers, etc.It can also be used for fire fighting of precious items in archives, museums, etc.Due to its low surface tension and good insulation, fluorinated fluids will not damage electronic components and circuits during fire extinguishing.
Moreover, it has excellent physical cooling effect, can quickly extinguish open fire, and has a good extinguishing effect on lithium battery fires.
Key Features
- Low surface tension, easy to flow;
- Good insulation;
- Good thermal performance, fast heat absorption;
- Zero ODP, green and environmental friendly.
Product Parameters
| Item | Typical Value |
| Appearance | Colorless transparent liquid |
| Boiling Point (℃) | 49 |
| Viscosity (25℃, cP) | 0.54 |
| Surface Tension (mN/m) | 7.9 |
| Pour Point (℃) | -108 |
| Density (25℃, g/ml) | 1.58 |
| Latent Heat of Vaporization (KJ/Kg) | 88 |
| Dielectric Strength (2.54mm gap, KV) | 47.1 |
| ODP | 0 |
| GWP | 1 |

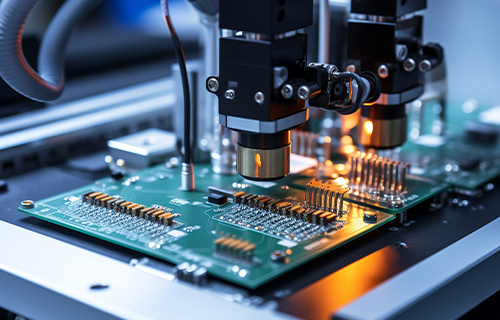

Liquid Cooling & Temperature Control
Fluorinated solvents are suitable for products such as special surface coatings or surface films due to their unique properties.As a solvent or diluent, such products have good compatibility, as well as physical and chemical stability.At the same time, they also have the characteristics of low viscosity, low surface tension, easy volatilization, etc.
According to different application needs, they can be widely used in three-proof coatings, anti-fingerprint coating liquids, dry film lubricating films and other fluorine-containing surface coating (protection) materials.
主要特点
- Extremely low surface tension and viscosity, easy to flow and wet;
- Low boiling point, fast volatilization speed, quick-drying coating;
- Non-hazardous, non-flammable and non-explosive, safe with no flash point;
- Non-toxic and harmless, green and environmental friendly.
Product Parameters
| Item | Typical Value |
| Appearance | Colorless transparent liquid |
| Density (25℃, g/ml) | 1.520 |
| Viscosity (25℃, cP) | 0.61 |
| Surface Tension (mN/m) | 14 |
| Boiling Point (℃) | 72 |
| Pour Point (℃) | -92 |
| Flash Point | None |
