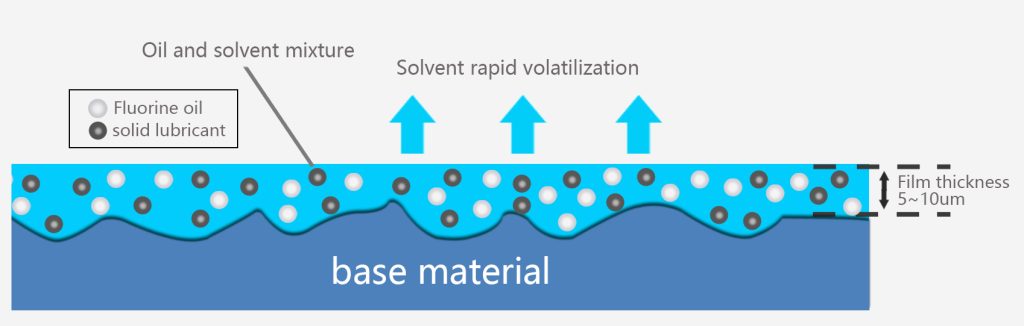

VNOVO Dry Film Lubricant is a fluorinated lubricant formulated by uniformly dispersing ultra-low-molecular-weight PTFE particles and PFPE oil in a fluorinated solvent. After application, the solvent evaporates quickly and forms a uniform, thin lubricating film on the surface of the workpiece. The resulting dry film provides low friction, clean lubrication, and stable performance without leaving a heavy oily residue.
Test conditions

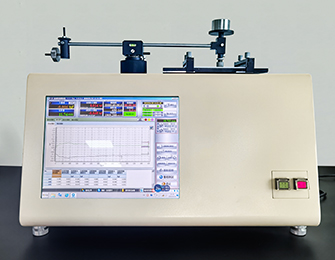

Testing equipment
VNOVO TYPE2019
load
2000g
Ball (static friction component)
Diameter 10mm
ABS board (dynamic friction component)
Thickness 2mm
speed
2000mm/min
Friction distance
50mm
Work frequency
2000 times (once per session)
Test Method

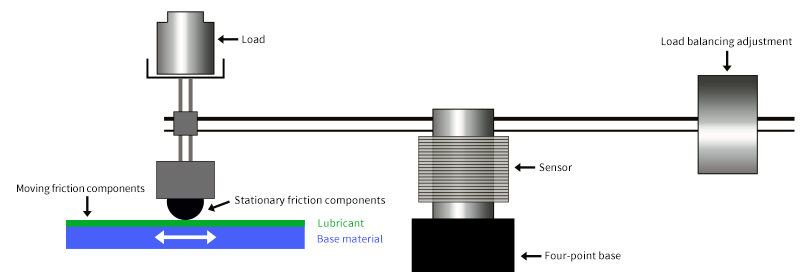

Principle Diagram

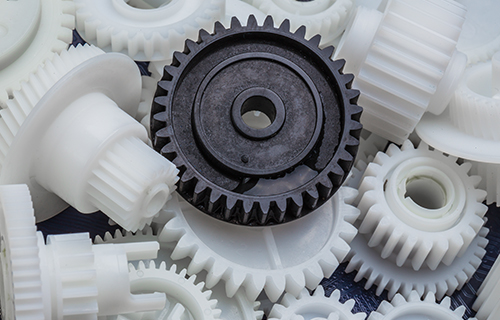

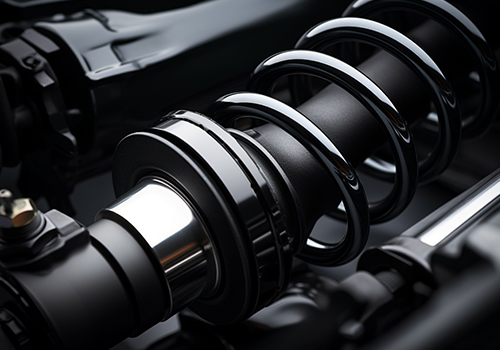

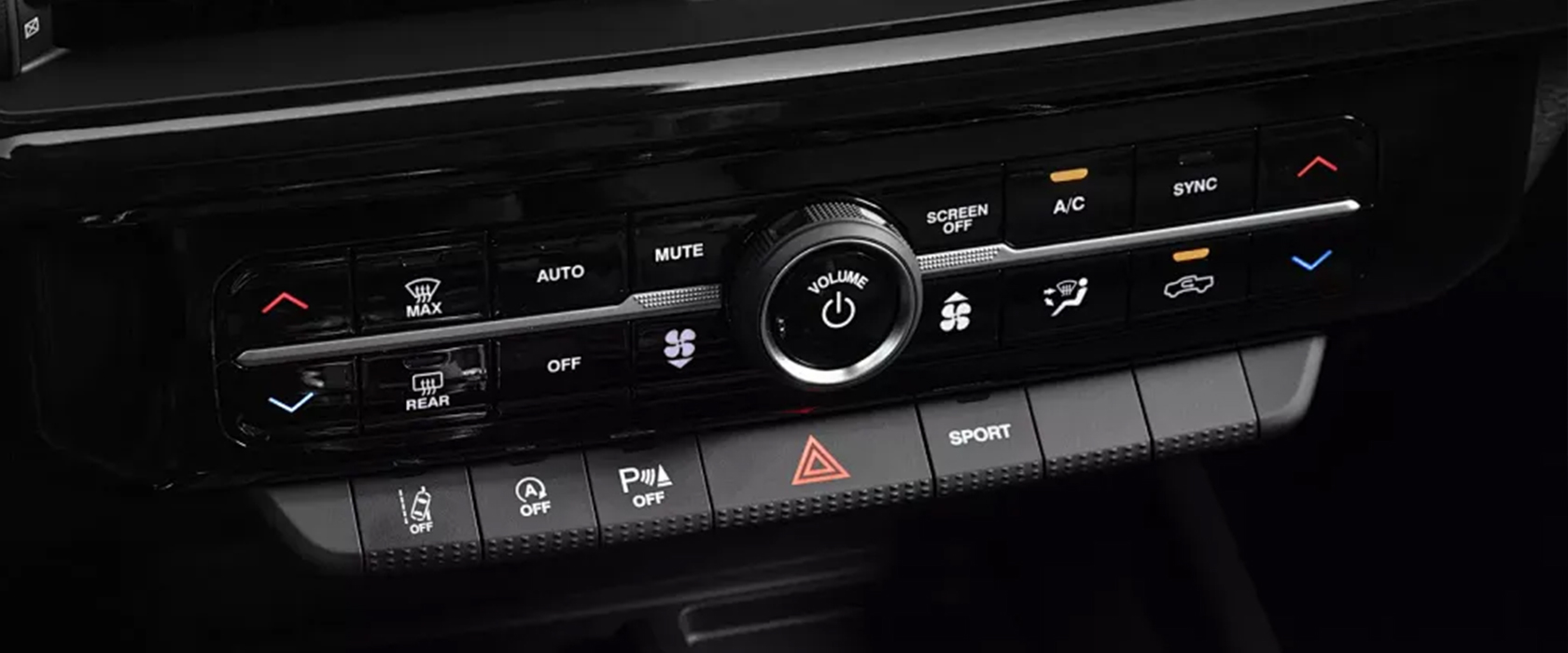

This series is designed for applications requiring clean appearance, wide temperature resistance, and reliable lubrication for metal, plastic, and rubber parts. Depending on the grade, VNOVO dry film lubricants can offer low odor, transparent film appearance, low friction coefficient, high load-carrying capability, noise reduction, damping performance, and easy visual identification. They are suitable for automotive components, plastic sliding parts, air-conditioning outlets, and other precision parts where cleanliness, appearance, and long-lasting lubrication are important.
Model
Color
Basic Oil
Thickener
Damping class
(℃)Temperature Range
Characteristic and Applications
Universal
T10
white liquid
1.6
None
-50~200
Low odor, meet environmental protection requirements; wide operating temperature range, uniform film thickness, short drying time, slow precipitation
Universal
T10L
white liquid
1.6
None
-40~200
High molecular weight base oil, a multi-functional product with both lubrication and noise reduction, good noise reduction and damping performance. suitable for auto parts slide rails, air conditioner outlets, etc.
Transparent
T11
transparent liquid
1.58
None
-50~200
Fully transparent dry film lubricant, no effect on the appearance of parts after film formation.
Odorless
T14
white liquid
1.58
None
-50~200
。Lubrication between plastics, transparent oil film, does not affect the appearance
Low friction
T13B
white liquid
1.62
None
-60~220
Very low coefficient of friction, high load resistance, durable lubrication, silencing.
High concentration
T20
white liquid
1.58
None
-50~200
Very low coefficient of friction, high load resistance, durable lubrication, noise reduction
Coloring
T22
red/blue liquid
1.59
None
-50~200
Fluorine solid additive is added, and it has a color after being attached to the surface of the material, which is convenient for identification
