By VNOVO Technical Support Team
Keywords: Oil Film Thickness, Precision Transmission, Viscosity Index, Grease Stability, 27 DOF

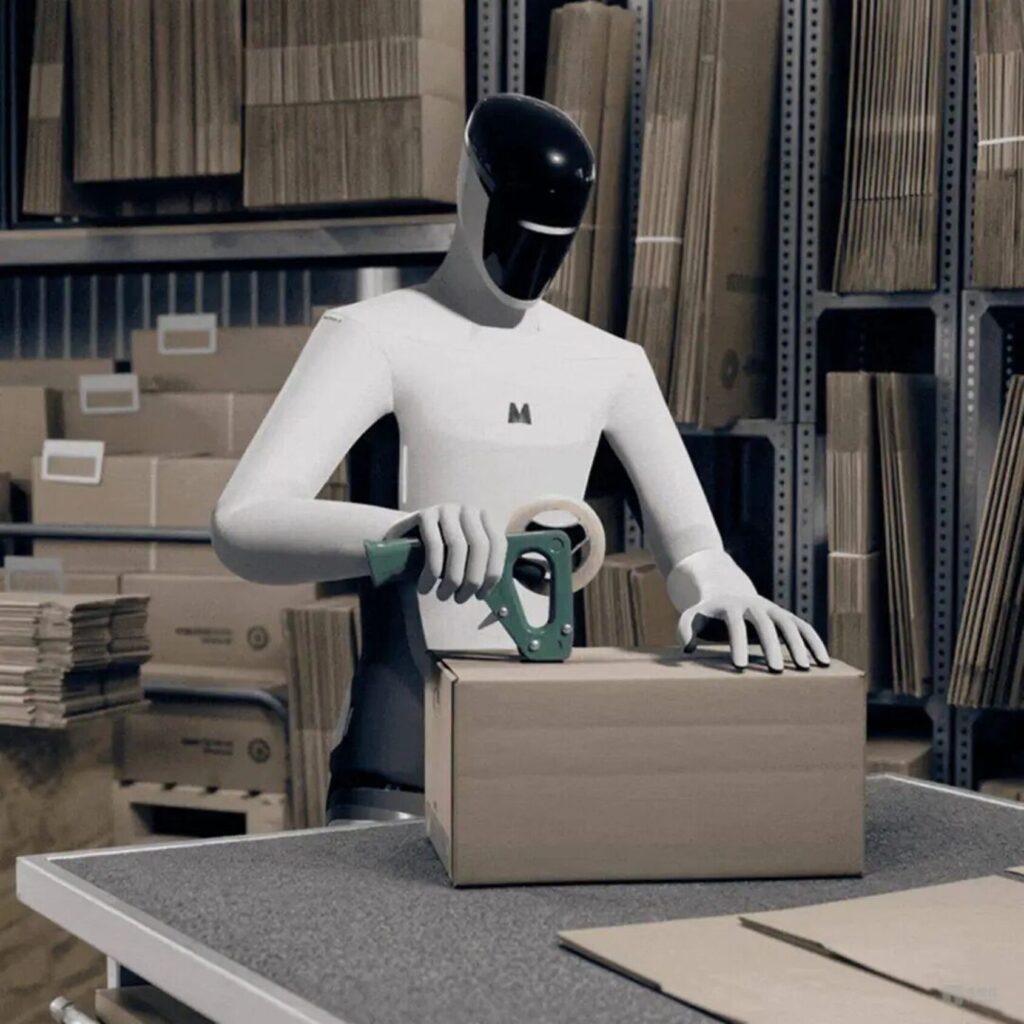

In May 2026, Matrix superSmart released the MATRIX-3 humanoid robot. Their self-developed “Dexterous Hand” has 27 degrees of freedom and can perform micron-level precision operations such as pinching, clamping, and rotation. Over 8,000 hours of cyclic testing have been completed, with 5,000 units planned for delivery this year.
The numbers are impressive enough. But as an engineer who has long followed precision transmission systems, my attention is not on the degree of freedom count —
It is on how error accumulates when these 27 joints are connected in series.
The Precision Account Starts from Oil Film Thickness
At gear mesh points in planetary reducers, oil film thickness is typically between sub-micron and a few microns. This number is invisible to the naked eye, but its fluctuation is amplified step by step along the transmission chain.
How exactly does it amplify?
Oil film thickness at gear mesh determines the actual backlash size. When oil film thins, backlash increases. When gears run in reverse, there is return error — this error directly translates to joint angular deviation. A single joint might only have 0.001° — small enough to ignore.
But the Dexterous Hand has 27 degrees of freedom. Every stage of linkage and every joint transmits this error.
A rough estimate: 27 joints, if each joint’s angular error is 0.001°, after geometric transmission through 3–4 stages of linkages, positioning error at the fingertip could reach the 0.1mm magnitude.
Design margin is directly consumed.
This is not a gear strength problem, not a tooth breakage problem — it is that oil film thickness stability is becoming the precision bottleneck for high-DOF dexterous hands.
Why Oil Film Thickness Drifts
Grease oil film thickness is not constant. It continuously fluctuates with three variables: temperature, load, and operating time.
Temperature: Base oil viscosity changes with temperature. The higher the viscosity index, the smaller the change. PAO viscosity index can reach 120 to 200, far superior to mineral oil. Good viscosity index means: when a dexterous hand switches from low-temperature environment to working temperature, oil film thickness change can be controlled within a smaller range.
Load: Under high load, extreme pressure additives form a chemical reaction film on the tooth surface (typically FeS or FePO₄), protecting the metal surface. But this film itself has thickness, which compresses or partially peels off as load fluctuates. Film thickness change similarly translates to mesh clearance change, thereby affecting precision.
Operating time: Grease is not static. Over 8,000 hours of cyclic testing, grease is continuously sheared. Products with high oil separation gradually lose base oil, viscosity gradually increases or decreases — depending on whether light or heavy components are lost. Meanwhile, shear-thinning-induced consistency decrease makes the oil film thinner.
Three factors combined: oil film thickness over the entire test cycle is not a horizontal line but a slowly drifting curve.
The Special Contradiction of High-DOF Dexterous Hands
Compared with multi-joint industrial bodies, dexterous hands have three different working condition characteristics:
Long transmission chain, error accumulates step by step. Industrial robots typically have only 6 DOF. Short transmission chain means single-stage error’s influence coefficient on end precision is small. Matrix superSmart’s 27 DOF means every stage “contributes” part of the error. Design tolerance space is greatly compressed.
Fingertip has high precision sensitivity. Precision assembly and chip grasping scenarios require fingertip positioning error controlled within 0.05mm. Every tiny fluctuation in the transmission chain can cause operation failure.
Joint space is narrow, poor heat dissipation. Micro planetary reducers installed inside fingers have extremely limited space. Heat is hard to dissipate. Temperature fluctuations are large, and oil film thickness changes are more dramatic. This is a physical constraint from structural design — not something grease can change — but grease must maintain stable performance under this constraint.
What the 8,000-Hour Test Is Really Testing
8,000 hours of cyclic testing verifies not just “no tooth breakage, no seizure.”
It simultaneously verifies: grease viscosity drift, oil film thickness attenuation, and joint angular precision long-term retention.
These three indicators are completely different from traditional “extreme pressure” and “high-temperature resistance.” They point to the same capability — oil film thickness consistency across all working conditions and the entire service life.
This requires grease to have high viscosity index, excellent shear stability, and low oil separation rate. Each is not a “bonus” but a necessary condition for high-precision scenarios.
Engineering Reference
The X500 (VNOVO) dexterous hand dedicated grease uses a fluorinated oil + PTFE system with high viscosity index, low oil separation rate, and excellent shear stability. It helps maintain stable oil film thickness across wide temperature ranges and long-term operation, protecting multi-joint precision transmission consistency. This is presented as a selection approach reference, not specific performance data.
Closing
High-DOF dexterous hand precision design is essentially an error allocation engineering problem. Oil film thickness consistency is one variable that has been long underestimated.
Search “VNOVO” or visit our website for more information.
