By VNOVO Technical Support Team

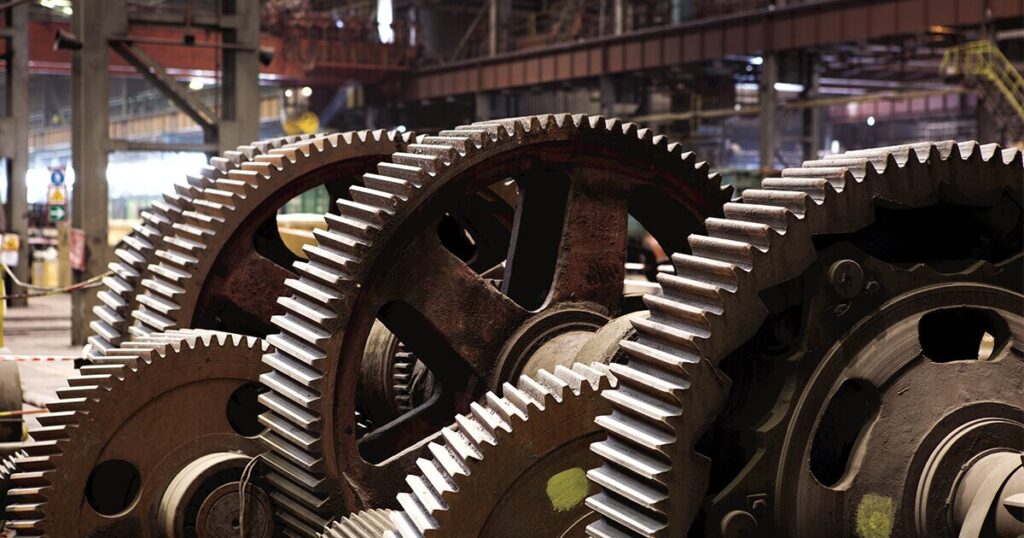

Open gears – large, exposed gear sets in mining crushers, cement kilns, steel mill drives, and sugar mill presses – operate without enclosed housings. They have no oil bath, no contamination shield, and no internal re-lubrication. Instead, they rely on adhesive grease applied directly to the tooth face, which must stay in place under gravity, centrifugal force, and environmental exposure while carrying extreme loads.
What Makes Open Gear Applications Demanding for Gear Grease?
Open gears present challenges fundamentally different from enclosed gearboxes:
– No enclosed housing. The gear set is exposed to dust, rain, and contaminants. The grease must function as both lubricant and protective barrier.
– Extreme loads and low speeds. Open gears transmit massive torque at low speeds (often below 5 rpm). Teeth operate in boundary lubrication, where solid lubricants become essential.
– Centrifugal and gravity displacement. Large gears generate forces that fling conventional grease off the tooth face. The grease must have high adhesion and tack.
– High sliding-to-rolling ratio. Girth gears and worm drives have high sliding contact. Sliding pushes lubricant from the contact zone, requiring high base oil viscosity and strong film-forming capability.
– Environmental contamination. Dust, cement particles, and metal debris contaminate the lubricant on exposed teeth. The grease must tolerate contamination without forming abrasive pastes.
– Intermittent re-lubrication. Open gears are re-lubricated by manual application, spray, or drip feed at intervals. Between applications, the on-tooth grease must continue performing.
– Wide ambient temperature range. Outdoor installations face -20 °C to 50+ °C. The grease must pump at low temperatures while maintaining film at high temperatures.
Why Do Open Gear Problems Persist Even When Gear Grease Is Applied?
1. Grease thrown off the tooth face. Low-adhesion greases are displaced by centrifugal force or gravity, leaving teeth unprotected.
2. Insufficient load-carrying capacity. Conventional greases without solid lubricants cannot maintain a separating film under extreme boundary conditions, leading to metal-to-metal contact.
3. Contamination forming abrasive paste. Dust mixing with soft grease on exposed teeth creates abrasive compounds that accelerate wear.
4. Inadequate sprayability or pumpability. Some high-viscosity greases are too stiff for spray systems at low ambient temperatures, causing uneven application.
5. Grease oxidation between re-lubrication. If the grease oxidizes or dries between application cycles, the gear runs unprotected.
6. Wrong NLGI grade for the application method. NLGI 2 grease in a spray system designed for NLGI 0-1, or semi-fluid grease on a vertical surface, creates application problems.
What Properties Determine Whether a Gear Grease Will Perform on Open Gears?
Key properties:
– Adhesion and tack. The grease must adhere to teeth and resist centrifugal displacement. High-tack formulations with adhesive polymers are essential. Tack measured on CTM-90 scale (1-5).
– Solid lubricant content. MoS₂ provides excellent boundary load-carrying; graphite maintains lubrication at elevated temperatures with moisture present.
– Base oil viscosity. High viscosity (typically 400-2000 cSt at 40 °C) ensures adequate film under heavy loads. PAO offers better viscosity index than mineral oil.
– NLGI consistency. Must match application method: NLGI 0-1 for spray and drip systems; NLGI 1-2 for manual brush or trowel. Semi-fluid grades flow into tooth roots but may not stay on vertical surfaces.
– EP and AW additives. Extreme-pressure for shock loading; anti-wear for gradual tooth wear. For bronze worm wheels, inactive sulfur EP is required to avoid corrosive attack.
– Water resistance. Outdoor gears face rain and washdown. Grease must resist washout (ASTM D1264) without emulsifying.
– Sprayability and pumpability. For automatic systems, grease must be pumpable at the lowest expected temperature and spray evenly.
– Contamination tolerance. Formulation should resist forming abrasive pastes with dust and debris.
How to Select the Right Gear Grease for Open Gear Applications
Step 1 – Identify gear type and conditions:
| Open Gear Type | Typical Conditions | Key Requirement |
| Girth gear (cement kiln) | Very slow, extreme load, outdoor | High tack, MoS₂/graphite, high viscosity |
| Crusher drive (mining) | Heavy shock, dusty | EP, solid lubricants, contamination tolerance |
| Sugar mill drive | Heavy load, wet | Water resistance, high adhesion, EP |
| Steel mill gear | High temp, cyclic | High-temp stability, graphite |
| Large worm drive | High sliding, bronze wheel | Inactive sulfur EP, yellow-metal safe |
Step 2 – Match formulation: Heavy load + boundary → MoS₂ + high-viscosity PAO. High temperature → graphite addition. Wet → water-resistant thickener. Bronze → inactive sulfur EP.
Step 3 – Match application method: Automatic spray → NLGI 0-1. Drip feed → NLGI 0. Manual → NLGI 1-2, high tack.
Quick Reference: Selection Guide
| Gear Condition | Key Properties | Direction |
| Heavy load, low speed | MoS₂, high viscosity, high tack | MoS₂ open gear grease; PAO; NLGI 0-1 or 1-2 |
| High temperature (>120 °C) | Graphite, thermal stability | Graphite-fortified; high-viscosity |
| Wet / washdown | Water resistance, adhesion | Water-resistant thickener; high tack |
| Bronze worm wheel | Inactive sulfur EP, yellow-metal safe | Inactive sulfur; no active sulfur |
| Automatic spray system | Sprayability, NLGI 0-1 | Semi-fluid; verify pumpability at low temp |
| Dusty / abrasive | Contamination tolerance, solid lubricants | MoS₂/graphite; avoid soft debris-embedding greases |
How VNOVO Provides Technical Support
VNOVO does not supply off-the-shelf “open gear grease” with universal claims:
Application-Oriented Selection Guidance – VNOVO reviews your gear type, load and speed, environmental exposure, re-lubrication method, and ambient temperature, recommending solid lubricant type, base oil viscosity, NLGI grade, and application compatibility.
Material Compatibility Verification – VNOVO helps assess candidates against gear materials (steel, bronze, cast iron) and the re-lubrication system, with emphasis on yellow-metal safety for worm drives and sprayability for automatic systems.
Scenario-Based Communication Support – VNOVO provides rationales explaining *why* a direction is suggested, what trade-offs exist (MoS₂ = excellent boundary protection but dark residue vs. graphite = better high-temp performance but needs moisture; high viscosity = better film but harder to spray vs. lower viscosity = easier application but thinner film; NLGI 0 = sprayable but may run off vertical surfaces vs. NLGI 2 = stays put but requires manual application), and what validation steps to prioritize.
Conclusion
When to use specialized open gear grease
When the gear operates without an enclosed housing exposed to the environment, when loads are extreme and speeds low creating boundary conditions, when centrifugal displacement requires high-adhesion formulations, or when the re-lubrication method dictates specific NLGI consistency.
When a conventional enclosed-gearbox approach may suffice
When the gear is inside a sealed housing with oil bath, speeds support hydrodynamic film formation, contamination is controlled, and re-lubrication is handled by internal oil circulation.
What VNOVO can support
1. Selection guidance – translating gear type, load, speed, environment, and re-lubrication method into solid lubricant type, viscosity, NLGI grade, and application compatibility
2. Material matching – assessing compatibility between candidates and gear materials including bronze and cast iron
3. Scenario communication – providing the technical rationale and decision framework to specify, validate, and apply the right gear grease for your open gear applications
*This article is provided for informational purposes based on industry references and open gear lubrication principles. Specific product selection should always be verified against equipment manufacturer specifications, OEM recommendations, lubricant supplier data, and application-specific testing.*
