By VNOVO Technical Support Team
Keywords: KAI Robot, 36 DOF, High-Frequency Reversal, Tactile Sensing, Micro-Pitting, PTFE

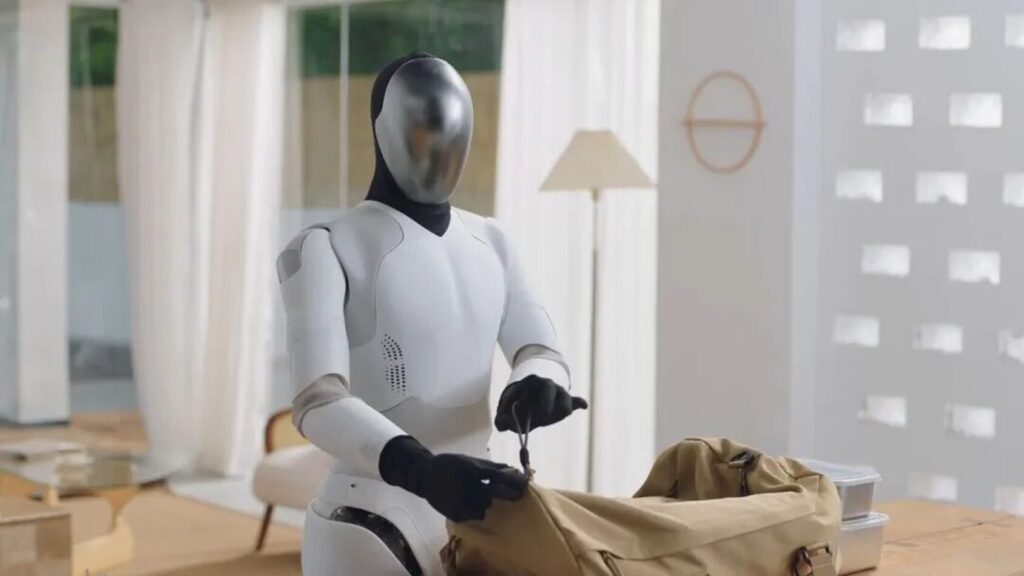

In May 2026, Shenzhen Chaowei Power released the full-size humanoid robot KAI. The numbers are impressive: 115 DOF for the whole body, 36 DOF for the dexterous hand (22 main-controlled + 14 compliant), 18,000 tactile skin contact points, capable of sensing 0.1N light touch.
But in a transmission engineer’s eyes, behind these numbers hides a problem nobody explicitly states: the more sensitive the tactile sensing and the more compliant the degrees of freedom, the more frequent the internal small-module planetary reducer reversal. And reversal is precisely the accelerator of small gear fatigue.
The “Side Effect” of 14 Compliant DOF
KAI’s 14 compliant DOF make soft contact during collisions possible. But the other side of “soft” is countless micro-level reverse torques at the microscopic level.
When compliant joints experience instantaneous reverse displacement during collision or adaptive grasping, they form micro-amplitude extremely small axial and radial disturbances — tooth surfaces repeatedly enter the fretting wear zone. Fretting wear causes tooth surface micro-protrusions to repeatedly weld, tear, and release, forming tiny wear debris. These debris become new abrasive particles, accelerating fatigue source initiation. Wear generates particles, particles intensify wear — this chain is greatly strengthened under compliant joint working conditions.
18,000 Tactile Points: Reversal Interval Compressed from Seconds to Milliseconds
18,000 tactile points mean KAI can sense extremely light contact and quickly make finger posture corrections. But from a lubrication perspective, this is a double-edged sword.
The more sensitive the tactile sensing, the more frequent the finger posture corrections. Small-module gear reversal interval, from designed seconds-level, is compressed to milliseconds.
Oil film establishment requires time. Tooth surface oil film is constantly torn apart and rebuilt during frequent reversals. Tooth surface is actually in a boundary lubrication or even dry friction critical state during each reversal. Under long-duration operation, this “intermittent oil film failure” acceleration effect on micro-pitting and fatigue crack propagation is often the least traceable underlying cause in round-the-clock production line operation.
Test Data
I tracked a similar-DOF dexterous hand prototype. Under pure steady-state rotation conditions, 0.5-module planetary gears ran 30 million cycles still intact. But once switched to simulated KAI high-frequency reversal conditions (several posture corrections per second), micro-cracks appeared at approximately 8 million cycles — life shortened by nearly 4×.
Not gear quality is inadequate — it is that “small module + high-frequency reversal + fretting wear” this combination is inherently lethal.
What Lubrication Solutions Can Do
Materials, heat treatment, and tooth root fillet optimization — these are the foundation, determining the upper limit. But what truly determines actual life is grease boundary retention capability under high-frequency reversal.
Taking X500 designed for dexterous hand working conditions as an example: it uses a fluorinated oil + PTFE system. Fluorinated oil molecular chain and PTFE microparticles form a physical protective layer on tooth surfaces, maintaining boundary film even in the zero-speed transition zone, alleviating the “lubrication vacuum period.” Low-viscosity base oil reduces starting torque, avoiding viscous resistance affecting force control precision. 800kgf extreme pressure value buffers instantaneous impact at each start-stop.
In testing, prototypes using X500 had micro-pitting initiation period extended by approximately 2.5× under the same reversal conditions.
Choosing the right grease is the first step in pinching off the “micro-pitting → abrasive wear → tooth breakage” chain.
Closing
18,000 tactile points represent the cutting edge of humanoid robot perception capability. But behind this perception revolution, the transmission system’s endurance challenge deserves equal attention. High-DOF compliant hands bring more natural interaction, but also bring more complex reverse load histories — and every reverse load cycle is a test of the grease film.
Search “VNOVO” or visit our website for more information.
