By VNOVO Technical Support Team
Keywords: Mass Production, Tooth Breakage, Planetary Reducer, Grease Life, 24× Scaling
Here is the story.
Figure recently dropped an announcement: 120 days, production scaled from 1 unit per day to 1 unit per hour. 24×. Japan Airlines Immediately afterwards announced introduction of Figure. Industrial scenarios are starting to run.
That is fast.
Honestly, seeing this news my first reaction was excitement. But immediately my second reaction was —
What if something goes wrong?
The biggest fear in mass production is not technical difficulty — it is when some obscure part suddenly fails in batch after scaling up. Tooth breakage in dexterous hand planetary reducers is exactly what I worry about most.
Tooth Breakage Is Not a “Snap” — It Is a Chain

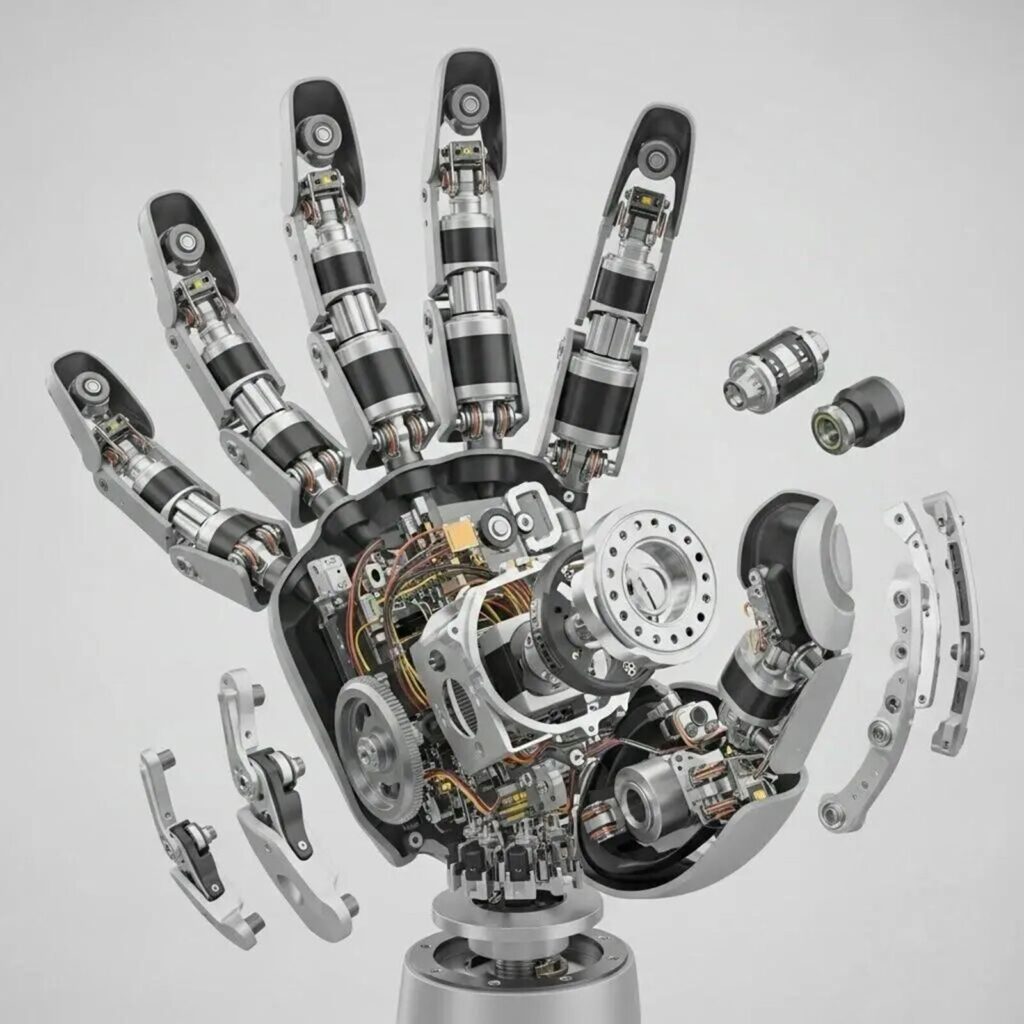

Background: A single humanoid robot’s dexterous hands open and close tens of thousands of times per day. Each finger joint contains a micro planetary reducer, typically with outer diameter no more than 15mm, module as small as 0.15–0.3mm, and tooth width only 12mm.
What does this size mean? A fingernail-sized space containing more than a dozen gears smaller than sesame seeds.
Production surge of 24× means quality fluctuations, lubrication deviations, and assembly errors at this size are all multiplied by 24×, then buried inside finger joints, waiting to explode.
Tooth Breakage Is Not a “Snap” — It Is a Three-Step Chain
Step 1: Tooth root micro-cracks silently initiate.
Dexterous hand planetary reducers have high-frequency start-stop. Impact load comes every few seconds, with peak typically 2–3× static load. This force directly strikes the gear root.
The tooth root is the most concentrated stress location in the entire gear. Stress concentration factor is typically 1.5–2× the average tooth surface stress. Under high-frequency impact, metal microscopically bears repetitive tensile-compressive cycles, and cracks quietly initiate at the tooth root — silent and invisible.
Step 2: Insufficient lubrication, cracks accelerate.
The problem is grease. Dexterous hand joint space is extremely limited. Ordinary grease is easily thrown out of the mesh zone under high-frequency centrifugal force field. Once oil film drops below 0.5μm, metal direct contact occurs at tooth root crack locations, and lubricating protection completely fails.
Reference data: when a tooth root has an initial crack of 0.3–0.5mm, good lubrication can delay extension for over tens of thousands of hours. After lubrication fails, it can develop to the tooth breakage threshold within a few thousand hours. For a humanoid robot planned for commercial operation, this could be just a few months.
Step 3: Snap. Then load redistributes to adjacent gears,Failed one after another.
Tooth breakage is contagious. Once it occurs, the entire machine stops for repair, at extremely high cost.
Why Ordinary Grease Cannot Handle It
Dexterous hand planetary reducer working conditions demand almost contradictory things from grease: extremely small space but must fill enough, dramatic temperature fluctuations, high-speed centrifugal grease-throwing, and 35dB silent operation requirement.
Ordinary mineral oil-based grease under high-low temperature alternation, centrifugal force field, and boundary lubrication triple superposition often begins attenuating within 2,000 hours. Humanoid robot joint module life target is 8,000 hours minimum — a fourfold gap.
This fourfold gap is the breeding ground for tooth breakage.
How to Break the Deadlock
For this failure chain, grease needs to simultaneously function at three dimensions:
- **Tooth root protection:** Grease must penetrate the tooth root zone, providing metal surface protection during boundary lubrication phase, preventing fretting wear from initiating initial cracks.
- **Impact buffering:** High-viscosity base oil maintains oil film integrity under impact load, preventing peak loads from tearing the oil film and causing metal direct contact.
- **Long-life stability:** Synthetic base oil has strong antioxidant capacity, maintaining stable lubrication performance under high-temperature conditions, preventing crack acceleration from oil film thinning.
X500 (VNOVO) formulation is designed precisely with this logic:
PFPE fluorinated oil base, -90°C to +250°C working temperature range, chemically inert to oxygen, ozone, and acid-base media, not easily degrading in complex environments over long periods. PTFE (polytetrafluoroethylene) microparticles with ultra-low friction coefficient form a solid protective cushion on tooth roots and tooth surfaces at startup before oil film is established, avoiding metal direct contact causing initial damage.
The synergy of both suppresses tooth root micro-crack initiation and propagation speed while meeting the 35dB silent requirement.
Closing
Figure’s production surge is an industry milestone. But the larger the scale, the higher the probability that any lubrication oversight gets multiplied by the scale factor.
Choosing the right grease is the highest cost-performance-ratio preventive investment.
Search “VNOVO” or visit our website for more information.
