By VNOVO Technical Support Team

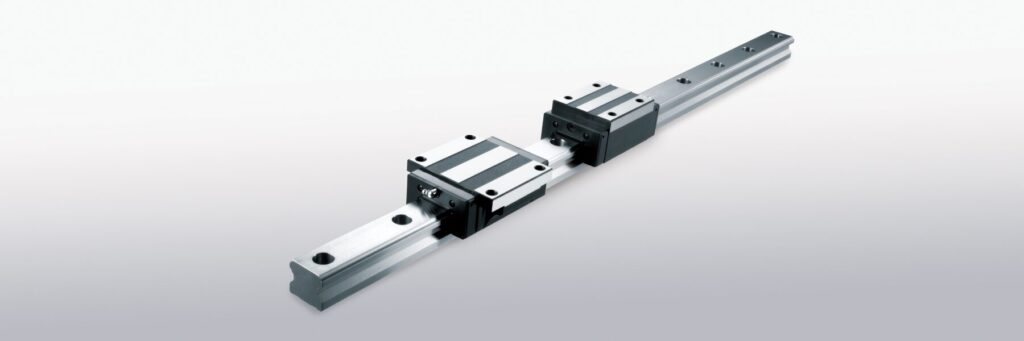

Slide rails are everywhere: drawer slides, keyboard trays, monitor arms, vehicle seat rails, medical equipment rails. Without damping, sliding motion is abrupt, noisy, and imprecise. Damping grease applied to the sliding interface adds shear resistance that slows free motion, eliminates rattles, and creates the tactile quality users associate with well-engineered products. Selecting correctly requires matching damping level to the slide’s mass, speed, orientation, and desired feel.
What Makes Slide Rails Demanding for Damping Grease Selection?
– Controlled sliding speed. A drawer that slams shut or monitor arm that drops abruptly feels cheap and risks damage. Damping grease governs sliding speed through shear resistance.
– Noise and vibration suppression. Metal-on-metal or plastic-on-metal contacts generate buzz, squeak, and rattle (BSR). Damping grease prevents surface contact, eliminating noise. Per Nye Lubricants, preventing BSR “improves the perceived quality of your design.”
– Haptic quality. The feel of a sliding component directly affects perceived product quality. Damping grease is selected as much for subjective feel as for objective performance. Nye recommends testing several viscosities to choose the desired feel.
– Temperature sensitivity. Damping force depends on viscosity, which changes with temperature. A smooth slide at 20 °C may be stiff at -10 °C or too fast at 50 °C.
– Material compatibility. Rails use steel-on-steel, steel-on-plastic, aluminum-on-plastic, and elastomer seals. The grease must be compatible with all without swelling or degradation.
– Load orientation. Vertical slides (monitor arms) must resist gravity acceleration. Horizontal slides (drawers) need less damping. Viscosity must match orientation.
– Long service life. Most rails are factory-assembled and never re-lubricated. Damping properties must persist for the product’s lifetime.
– Stay-put requirement. The grease must resist displacement under repeated cycles. High tack per CTM-90 (scale 1-5) indicates retention.
Why Do Slide Rail Performance Problems Persist Even When Damping Grease Is Applied?
1. Damping too light. Low-viscosity grease provides insufficient shear resistance for heavy or vertical slides, causing abrupt motion and impact.
2. Damping too heavy. High-viscosity grease on a light slide makes movement stiff and sluggish, frustrating users.
3. Damping changes with temperature. Greases with low VI lose damping when hot and become stiff when cold.
4. Grease displaced from the rail. Low-tack formulations are pushed off by repeated cycles, leaving rails dry and noisy.
5. Incompatibility with plastic rails. Hydrocarbon damping greases can craze or stress-crack PC, POM, or ABS components.
6. Oil separation. Some damping greases separate over time, reducing effective viscosity and damping performance.
What Properties Determine Whether a Damping Grease Will Perform on Slide Rails?
– Dynamic viscosity (CTM-68 at 50 s⁻¹). Defines shear resistance. Nye damping greases range from 17 Pa·s (light) to 239 Pa·s (extra heavy). Selection depends on slide mass, orientation, and desired feel.
– Viscosity index (ASTM D2270). Higher VI = less change with temperature. Fluorocarbon Gel 880 (VI 658) and 891-V1 (VI 770) maintain consistent damping from -40 to +200 °C. NyoGel 774 series (VI 219-323) covers moderate ranges.
– Tack scale (CTM-90, 1-5). Higher tack = better surface retention. For repeated-cycle slides, tack ≥ 3 is preferred.
– Temperature range. NyoGel 774VLF: -50 to 120 °C. Fluorocarbon Gel 880: -40 to 200 °C. Uniflor 8322: -20 to 250 °C.
– Material compatibility. PAO/silica (NyoGel 774) and fluorinated (Fluorocarbon Gel, Uniflor) are compatible with most plastics and elastomers. Silicone-based (GLEITMO SIL 891-V1) does not swell most plastics.
– Shear stability. Must maintain damping under repeated sliding. Fluorocarbon Gel 868 series: “excellent shear stability for high load applications.”
– Oil separation resistance. GLEITMO SIL 891-V1: “zero oil separation,” maintaining damping for lifetime service.
How to Select the Right Damping Grease for Slide Rails？
Step 1 – Identify slide type and conditions:
| Slide Type | Typical Conditions | Key Requirement |
| Drawer slide (horizontal, light) | Light load, room temp, plastic | Light damping, quiet, plastic compatible |
| Drawer slide (heavy duty) | Heavy load, frequent, steel | Medium-heavy damping, wear resistant |
| Monitor / display arm (vertical) | Gravity load, temp variable | Consistent damping, stay-put |
| Keyboard tray slide | Light load, frequent, indoor | Light damping, quiet, long cycle life |
| Vehicle seat rail | Heavy load, temp extreme | Heavy damping, wide temp range |
| Medical equipment rail | Precise positioning, sterilization | Controlled motion, biocompatible, wide temp |
Step 2 – Match formulation: Light → NyoGel 774VLF (20 Pa·s). Medium → NyoGel 774H (46 Pa·s) or Fluorocarbon Gel 868 (30 Pa·s). Heavy → NyoGel 774VH (105 Pa·s) or Fluorocarbon Gel 868VH (64 Pa·s). Extreme temp → Fluorocarbon Gel 880/891-V1 or Uniflor. Plastic rails → PAO/silica or silicone.
Step 3 – Verify: Confirm damping feel (test multiple viscosities). Confirm temperature range. Confirm material compatibility. Confirm tack ≥ 3.
Quick Reference: Damping Grease Selection for Slide Rails
| Slide / Condition | Damping Level | Direction |
| Light horizontal (drawer, keyboard) | Light (17-20 Pa·s) | NyoGel 774VLF / Fluorocarbon Gel 868L |
| Medium horizontal (heavy drawer) | Medium (30-46 Pa·s) | NyoGel 774H / Fluorocarbon Gel 868 |
| Heavy / vertical (monitor arm, seat) | Heavy (64-105 Pa·s) | NyoGel 774VH / Fluorocarbon Gel 868VH |
| Wide temperature (-40 to 200 °C) | Stable, high VI | Fluorocarbon Gel 880 / 891-V1 |
| Plastic rails (POM, PC, ABS) | Plastic compatible | PAO/silica (774) or silicone (891-V1) |
| Extreme temp / environment | PFPE based | Uniflor 8172 / 8322 |
How VNOVO Provides Technical Support？
VNOVO does not supply off-the-shelf “damping grease” with universal claims:
Application-Oriented Selection Guidance – VNOVO reviews your slide type, load, orientation, desired feel, temperature range, and rail materials, recommending dynamic viscosity range, base oil type, VI, tack rating, and temperature capability.
Material Compatibility Verification – VNOVO helps assess candidates against specific rail materials (steel, aluminum, POM, PC, ABS) and elastomer seals – preventing plastic degradation and ensuring seal compatibility.
Scenario-Based Communication Support – VNOVO provides rationales explaining *why* a direction is suggested, what trade-offs exist (higher viscosity = more damping but stiffer feel vs. lower = smoother but less control on vertical slides; high VI = consistent across temperature but higher cost vs. moderate VI = adequate for stable indoor use; PAO/silica = good plastic compatibility vs. fluorinated = wider temperature and chemical resistance but higher cost; silicone = broad compatibility and zero oil separation but limited load capacity), and what validation steps to prioritize – including feel testing across temperature and cycle life verification.
Conclusion
When to use specialized damping grease on slide rails？
When the slide requires controlled smooth motion, when noise and vibration must be suppressed, when vertical or gravity-loaded slides need to resist acceleration, when consistent feel is required across temperatures, or when perceived quality depends on haptic performance.
When a general-purpose lubricant may suffice？
When the slide operates at low speed with no noise or feel requirements, load is light and horizontal, the environment is stable, and controlled motion is not a priority.
What VNOVO can support？
1. Selection guidance – translating slide type, load, orientation, and desired feel into damping viscosity range and formulation category
2. Material matching – assessing compatibility between damping grease candidates and specific rail and seal materials
3. Scenario communication – providing the rationale to specify, test, and validate the right damping grease for your slide rails
This article is provided for informational purposes based on industry references and motion control lubrication principles. Specific product selection should always be verified through feel testing, cycle life validation, and material compatibility testing.
