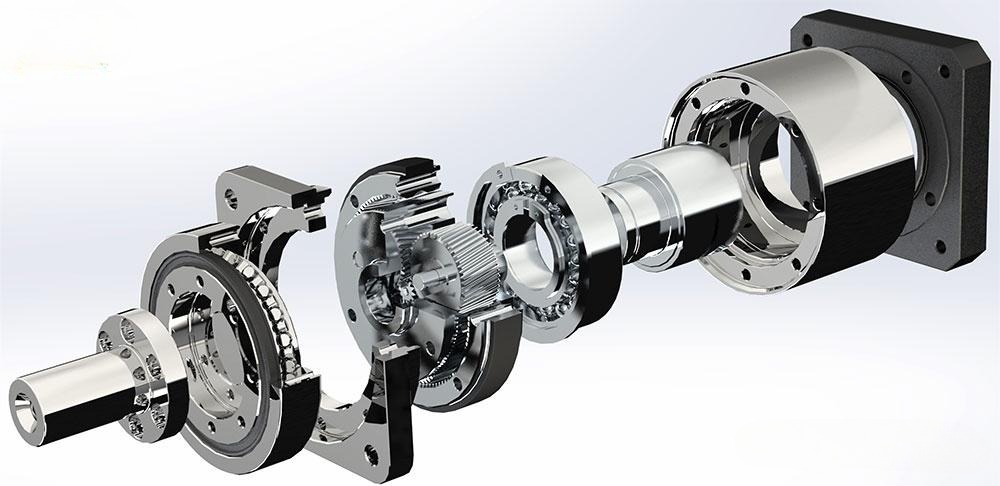

After maintaining a dexterous hand for some time, you open the micro planetary reducer and find that the grease that was once normal has turned darker, gray, or even black — the first instinct is “this grease is too dirty and needs to be changed.”
But the color change actually says much more than you might think. Lubricating grease is a real-time projection of the reducer’s internal condition: from transparent, light yellow, or light brown, to progressively deepening, to black and coked — each color corresponds to a real gear wear stage.
Once you understand the correspondence between color and condition, you do not need to send samples to a lab. A pair of eyes alone can tell you what health level the reducer is at right now.
Color of fresh grease: the baseline for all diagnostics
Lubricating grease is composed of base oil, thickener, and additives, with base oil accounting for 70% to 90%. When fresh grease is injected, the base oil is homogeneously distributed, and the grease presents a transparent or light yellow/light brown homogeneous state — this is the diagnostic baseline, and color change begins from here.
As load operation proceeds, the grease is progressively disturbed by stress and working conditions, and color begins to deepen. This is normal — friction generates trace heat, base oil and additives undergo mild thermal aging under stress, and the grease color transitions from light yellow/light brown to dark brown while remaining homogeneous. This is the mild thermal aging stage, with boundary lubrication occurring locally, but no visible damage yet on gear tooth surfaces.
This stage is easily overlooked because the grease still looks “quite normal.” But this is precisely the optimal window for intervention — grease performance has already begun to decline, but no irreversible damage has yet occurred.
What it means when color enters the danger zone
When grease color transitions from dark brown to black, assessing the “black” morphology can distinguish wear stages:
Black but homogeneous, no metal debris
— Wear particles have mixed into the grease in large quantities. Iron, copper, aluminum, and other metal powders darken the grease body. The tooth surface has transitioned from abrasive wear to micromotion fatigue or pitting spalling. At this point, bearing raceways or gear tooth surfaces most likely already show visible fatigue marks, and wear has entered the irreversible range. Timely evaluation of whether disassembly and inspection are needed is required.
Pure black, carbonized, dry texture
— This is the most alarming color. Base oil may have already carbonized and polymerized. The originally homogeneous grease has turned into carbonized residue, meaning the oil film has been absent for some time, and tooth surfaces most likely already exhibit microcracks. Delaying further at this stage makes tooth fracture nearly inevitable.
White emulsion, or grease body dried out with thickener and base oil fully separated
— The former indicates moisture intrusion or chemical additive precipitation, with dual superposition of base oil oxidation and rusting, accelerating subsequent failure. The latter indicates that lubrication function has already reached zero, with gears operating in a dry friction state and imminent tooth fracture risk. Both situations are emergency maintenance signals — continued operation is not appropriate.
Why micro planetary reducers are more sensitive to grease color change
The gear module of micro planetary reducers in dexterous hands is only 0.3 to 0.8 mm — a few dozen times smaller than ordinary industrial reducers. The smaller the module, the narrower the tooth flank clearance and the higher the unit area load, placing more stringent requirements on grease cleanliness and oil film integrity.
At the same time, humanoid robots’ repeat positioning accuracy requirements often reach ±0.02 mm. Lubricating grease directly affects the stability of friction coefficient, consistency of starting torque, and servo control compensation accuracy. Once grease color changes, friction characteristics have most likely begun to drift — and repeat positioning accuracy is probably declining simultaneously, even if you have not yet measured it.
Trace metal particles alone can destroy oil film integrity. For micro planetary reducers, just a few micrograms of iron powder or copper powder mixed into the grease is enough to form third-body abrasive particles, accelerating micromotion wear. The process of grease color darkening is simultaneously the process of wear particle accumulation.
How X500 guards the grease color safety zone
The time for lubricating grease to enter the “dangerous black zone” is fundamentally determined by two factors: oxidation resistance (resistance to thermal oxidative discoloration) and anti-wear capability (reduction of metal wear particle generation).
X500 (VNO, Dexterous Hand Joint Dedicated Grease) uses a PFPE perfluoropolyether base oil + PTFE thickener system, optimized at the formulation level for both factors. PFPE base oil has strong chemical inertia; the high bond energy of C-F bonds makes it resistant to oxidation reactions at high temperatures, fundamentally delaying the thermal oxidative discoloration process of the base oil. PTFE solid lubricant forms a low-friction protective film on tooth surfaces, reducing direct metal contact and suppressing the generation of wear particles — delaying the grease color from entering the dark stage.
Additionally, the chemical inertia of PFPE base oil means it does not erode plastic gears or attack seals, and it is compatible with engineering plastics commonly used in dexterous hand joints such as POM, PA, and PEEK, as well as rubber seals such as NBR and EPDM — avoiding material compatibility issues within the compact space of micro planetary reducers.
Lubricating grease is a real-time inspection report inside the reducer
The next time you disassemble a dexterous hand micro planetary reducer, before changing the oil, first look at the color and texture of the grease. This assessment takes only a few seconds — faster than sending samples to a lab, and earlier than waiting for accuracy degradation or abnormal noise to appear.
Before lubricating grease color enters the “dangerous black zone,” there is sufficient maintenance window for planning. Once it reaches the carbonized or dry separation stage, the only path left is disassembly and gear replacement.
When changing oil, observing color combined with tactile feel is faster than any portable instrument for locating faults. If abnormal grease color is found during disassembly and you need a systematic evaluation ready? Feel free to get in touch for a rapid lubrication condition inspection guide — let us help you assess whether the current state requires immediate disassembly.
