In the precision automation equipment, CNC machine tools, and semiconductor manufacturing sectors, linear guides and ball screws are the core components that enable precise linear motion. They act as the “skeleton” and “joints” of the equipment, directly determining machining precision, operational lifespan, and stability. In the global market, brands represented by THK have long held a dominant position thanks to their revolutionary technology and complete supporting systems.
Understanding their product features and supporting logic, while mastering scientific lubrication and maintenance solutions, is key to the efficient operation of equipment.
I. Core Product Features of THK Guides and Screws
THK’s core innovation lies in the LM (Linear Motion) Guide — which THK pioneered and commercialized globally as early as 1972. Its guide pair utilizes four rows of rolling grooves with a 45° contact angle design, allowing it to have the same load rating in the radial, reverse-radial, and lateral directions. Regardless of how the equipment is installed, it bears the load evenly.
The unique ball retainer technology eliminates friction between steel balls, significantly reducing noise and torque fluctuation, and achieving long-term maintenance-free operation. As for ball screws, THK offers two main categories: precision ground and rolled. The positioning accuracy of the precision grade can reach the micron level, and the basic dynamic load rating of certain models has been significantly improved, allowing them to travel over 20,000 kilometers under maximum load with outstanding longevity.
II. THK Original Supporting Product System
Beyond the main body of guides and screws, THK has built a complete supporting unit system, making it convenient for engineers to select and install directly. Support units are dedicated bearing assemblies offering EK, FK, EF, FF types (adapting to BNK and other precision screws) as well as BK, BF types (for general screws) for different screw diameters, ensuring rotational support rigidity and concentricity.
The lock nut employs an internal hexagon set screw and mounting pad anti-loosening design, which precisely fastens the screw shaft and bearing without coming loose over long-term operation. The nut bracket is a standard connector that can fix the screw nut directly to the workbench. Furthermore, THK’s intelligent actuator units (KR/SKR series) integrate the guide and screw into a single body, drastically reducing design and assembly hours.
These original accessories guarantee system precision, but they also mean the equipment is extremely sensitive to lubrication conditions.
III. The “Blood” of Precision Transmission Systems — VNOVO Professional Lubrication Solutions
Having a top-tier “skeleton” also requires matching “blood.” Under high loads, high speeds, and reciprocating motion, THK components demand extremely high anti-wear properties, low-temperature startability, cleanliness, and chemical stability from lubricants. VNOVO, as a professional brand deeply rooted in the field of precision lubrication, provides systematic solutions for linear guides and ball screws.
VNOVO’s dry film lubricant is the preferred choice for clean environments (such as semiconductor and medical equipment). After application, the solvent evaporates, forming a uniform lubricating film that is non-sticky to dust and non-seeping, effectively reducing the friction coefficient while protecting component surfaces from oxidation.
This product’s temperature resistance covers -40°C to 260°C, features excellent chemical inertness, is insoluble in water and most solvents, and complies with EU RoHS, PFOS, and halogen-free certifications, making it safe and environmentally friendly.

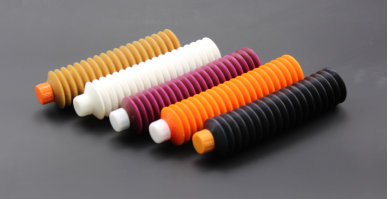

For high-speed, heavy-load operating conditions, VNOVO has introduced special lubricating greases. Based on low-viscosity synthetic oils with added anti-wear extreme pressure agents, they yield extremely low starting torque, minimal temperature rise, and strong shear resistance, making them particularly suitable for THK high-speed quiet guides and precision ball screws. Long-term use can maintain a stable lubricating film, extend maintenance intervals, and reduce downtime for servicing.
For equipment in low-temperature environments or with high-frequency start-stops, VNOVO also provides low-temperature, low-torque greases, ensuring smooth operation even at -50°C, with good compatibility with THK original seal materials. In addition, the VNOVO technical team can provide customized lubrication solutions for different application scenarios (such as vertical installation or high-dust environments), helping customers replace imported lubrication products and reduce overall costs.
From THK’s precision components to VNOVO’s intelligent lubrication, the two complement each other. Only with the correct selection coupled with scientific lubrication maintenance can equipment consistently maintain precision and reliability in high-intensity production, truly maximizing the return on investment.
