By VNOVO Technical Support Team
Cylinders, pumps, and valves all share a common dependency: reliable sealing. Whether it is a hydraulic cylinder rod seal, a pump shaft packing, or a valve stem packing, the seal must prevent leakage while allowing controlled motion. Sealing grease – applied to seal interfaces, O-rings, and packing glands – plays a dual role: lubricating the seal-to-surface contact to prevent wear, and filling micro-gaps to enhance the seal barrier.
What Makes Cylinder, Pump, and Valve Sealing Applications Demanding for Sealing Grease?

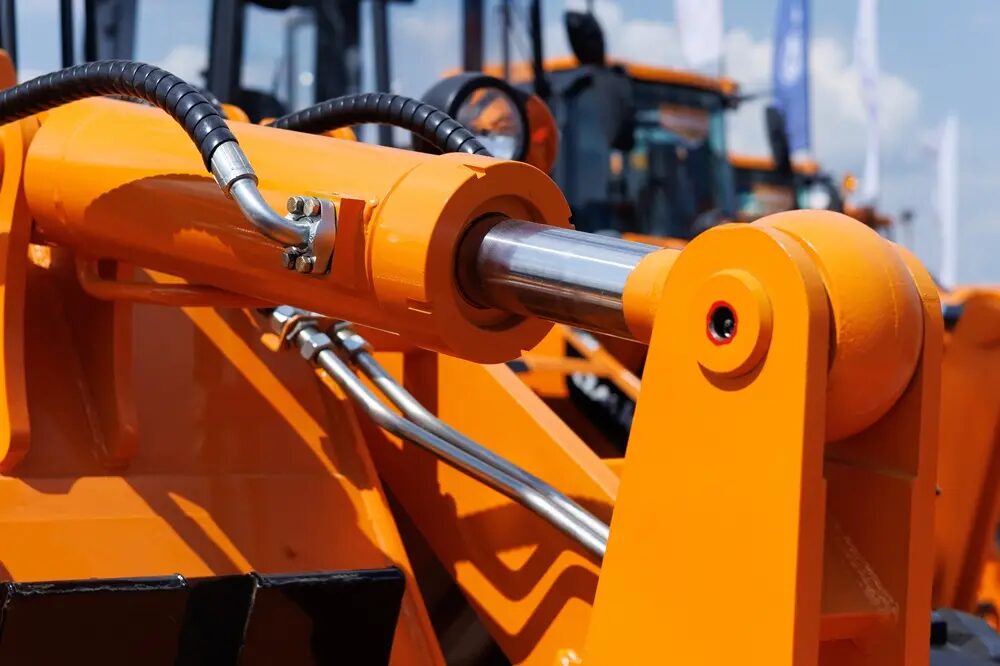

– Dynamic and static sealing combined. Cylinder rod seals experience reciprocating motion while the static portion must maintain a leak-free barrier. The grease must lubricate the dynamic interface without being scraped off, and fill gaps in the static zone.
– Pressure differentials. Hydraulic cylinders operate at pressures up to 350 bar. Pump seals handle suction-to-discharge differentials. The grease must remain in place under these loads.
– Chemical exposure. Seals in chemical pumps and process valves contact acids, alkalis, solvents, and fuels. The grease must resist the process media without dissolving or degrading.
– Temperature extremes. Hydraulic systems generate heat; outdoor valves face cold. The grease must function from cold start to maximum operating temperature.
– Elastomer compatibility. Seals use NBR, FKM, EPDM, PTFE, and other elastomers. The grease must be compatible without causing swelling, shrinkage, hardening, or cracking.
– Water and steam exposure. Water pumps, steam valves, and outdoor cylinders expose seals to water, steam, and condensation. The grease must resist washout.
– Regulatory requirements. Potable water valves, food pumps, and pharmaceutical equipment require NSF H1, WRAS, DVGW, or similar certifications.
– Long service intervals. Many seals are installed once and expected to perform for years without re-lubrication.
Why Do Cylinder, Pump, and Valve Sealing Problems Persist Even When Sealing Grease Is Applied?
1. Seal swelling or shrinkage. Hydrocarbon greases swell EPDM; ester greases may attack certain elastomers. Result: over-compression and high friction (swelling) or leak paths (shrinkage).
2. Grease washed out by process media. Low-tack greases are displaced from seal interfaces by water, steam, or process fluids, leaving seals unprotected.
3. Grease hardening. Extended high-temperature exposure causes some greases to oxidize and harden, losing lubrication and gap-filling capability.
4. Stick-slip in dynamic seals. Inconsistent friction causes jerky cylinder motion, erratic valve positioning, or seal wear.
5. Chemical degradation. Greases not formulated for the process medium dissolve or break down when exposed to aggressive fluids.
6. Over-application. Excessive grease in packing glands can block seal flexing or contaminate the process stream.
What Properties Determine Whether a Sealing Grease Will Perform in Cylinders, Pumps, and Valves?
Key properties:
– Elastomer compatibility. Must be verified against the specific seal material. Silicone greases are broadly compatible; PAO suits NBR and FKM; fluorosilicone (e.g., MOLYKOTE 3452) resists chemicals while maintaining compatibility.
– Controlled swell behavior. Some sealing greases deliberately cause slight O-ring swelling (e.g., MOLYKOTE 55) to enhance tightness. Others are zero-swell. The application determines which is appropriate.
– Water and chemical resistance. Must resist washout (ASTM D1264) and maintain function with process media. Fluorosilicone and PFPE offer the broadest chemical resistance.
– Adhesion and stay-put. The grease must adhere to surfaces and resist displacement by pressure, motion, or media. High-tack formulations improve retention.
– Temperature range. Silicone and fluorosilicone greases offer wide ranges; PAO covers most industrial conditions.
– Friction consistency. For dynamic seals, consistent low friction prevents stick-slip. Silicone greases provide low friction on elastomeric surfaces.
– Regulatory compliance. NSF H1, DVGW, WRAS, ACS as required.
– Long-term stability. Must resist oxidation and consistency change over the seal service life.
How to Select the Right Sealing Grease for Cylinders, Pumps, and Valves
Step 1 – Identify seal type and conditions:
| Application | Typical Conditions | Key Requirement |
| Hydraulic cylinder rod seal | High pressure, reciprocating, NBR/FKM | Elastomer compatible, anti stick-slip |
| Pump shaft packing | Rotating, chemical, water | Chemical resistance, water resistance |
| Valve stem packing | Reciprocating/rotating, process media | Chemical resistance, temperature range |
| O-ring (static) | Pressure, temperature | Elastomer compatible, controlled swell |
| Potable water valve | Water contact, regulatory | NSF H1/DVGW/WRAS, water resistant |
Step 2 – Match formulation: General hydraulic → silicone or PAO, elastomer-verified. Chemical → fluorosilicone or PFPE. Water/steam → water-resistant silicone. Food/water → NSF H1 + DVGW/WRAS.
Step 3 – Verify: Confirm elastomer compatibility. Confirm media resistance. Confirm certifications. Validate through service testing.
Quick Reference: Selection Guide
| Condition | Key Properties | Direction |
| Hydraulic cylinder (NBR/FKM) | Elastomer compatible, anti stick-slip | Silicone or PAO; verify NBR/FKM |
| Chemical pump (aggressive media) | Chemical resistance, fluorosilicone | Fluorosilicone or PFPE |
| Water / steam service | Water resistance, washout resistance | Water-resistant silicone |
| O-ring assembly (slight swell OK) | Slight swell enhances seal | Silicone O-ring grease (slight-swell type) |
| Potable water / food | NSF H1, DVGW, WRAS | Certified food-grade sealing grease |
| High temperature (>150 °C) | Thermal stability, non-melting | High-consistency silicone compound or PFPE |
How VNOVO Provides Technical Support
VNOVO does not supply off-the-shelf “sealing grease” with universal claims:
Application-Oriented Selection Guidance – VNOVO reviews your seal type, operating conditions, elastomer material, and regulatory requirements, recommending base oil type, thickener system, swell behavior, and compliance level.
Material Compatibility Verification – VNOVO helps assess candidates against the specific seal elastomer, process media, and housing materials – with emphasis on swell behavior, chemical resistance, and long-term seal life.
Scenario-Based Communication Support – VNOVO provides rationales explaining *why* a direction is suggested, what trade-offs exist (silicone = broad elastomer compatibility and low friction but limited chemical resistance vs. fluorosilicone = chemical resistance but higher cost; slight swell = enhanced sealing but higher friction vs. zero swell = lower friction but potentially less positive seal; PAO = good NBR compatibility but swells EPDM), and what validation steps to prioritize.
Conclusion
When to use specialized sealing grease in cylinders, pumps, and valves
When the seal operates under pressure with dynamic motion, when process media exposure demands chemical resistance, when elastomer compatibility must be verified for specific seal materials, or when regulatory certifications (NSF H1, DVGW, WRAS) are required.
When a general-purpose approach may suffice
When the seal operates at low pressure and moderate temperature with compatible media, the elastomer is highly resistant (FKM with PAO), and no regulatory certifications or aggressive chemical exposure are involved.
What VNOVO can support
1. Selection guidance – translating seal type, conditions, elastomer, and media into base oil type, swell behavior, and compliance level
2. Material matching – assessing compatibility between candidates and specific elastomers, process media, and housing materials
3. Scenario communication – providing the technical rationale and decision framework to specify, validate, and apply the right sealing grease for your cylinders, pumps, and valves
*This article is provided for informational purposes based on industry references and fluid power sealing principles. Specific product selection should always be verified against equipment manufacturer specifications, OEM recommendations, lubricant supplier data, and application testing.*
